24V DC Solar Tracker Linear Actuator
Self-Locking Design for PV Tracker Systems
Designed for PV tracker systems, this 24V DC linear actuator provides stable push and pull movement for repeated solar tracking operation and long-term outdoor use.
IP66 is the standard protection class for TOMUU solar tracker actuators. IP67 is available as an option for project requirements needing a different protection configuration.
For selected configurations, IP68 protection is also available, depending on stroke and project requirements.
With a self-locking design, the actuator is suitable for PV tracker applications requiring reliable position holding when movement stops.
Key Features
24V DC Rated Voltage
Self-Locking Position Holding
IP66 Standard Protection
IP67 / IP68 Protection Options
Technical Specifications
| Parameter | Specification |
| Application | PV Tracker System |
| Rated Voltage | 24V DC |
| Protection Class | IP66 Standard / IP67 Optional / IP68 Available for Selected Configurations |
| Locking Function | Self-Locking |
| Stroke | Customizable |
| Installation Dimensions | Customized according to stroke and tracker structure |
IP68 availability depends on stroke and actuator configuration. Stroke and installation dimensions can be configured according to tracker structure and project requirements.
Self-Locking for PV Tracker Position Holding
The self-locking function helps the actuator maintain its position after reaching the required tracker angle.
This is useful for PV tracker systems that require stable position holding after movement stops. The self-locking requirement should be considered together with the tracker load, installation structure and operating conditions.
Protection Options for Outdoor ApplicationsIP66 is the standard protection level for this actuator. IP67 can be provided as an option, while IP68 is available for selected configurations depending on project requirements.
Project Applications
TOMUU linear actuators are used in solar tracking projects for reliable movement and positioning of tracker structures under long-term outdoor operation.
Why TOMUU for Solar Projects?

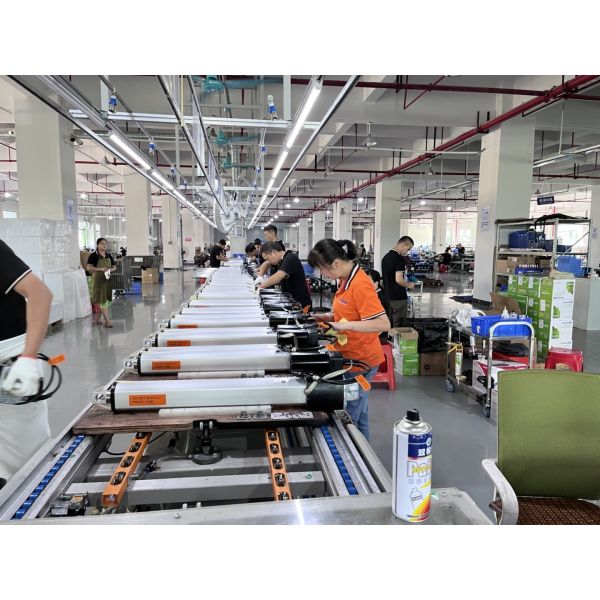

1,000 pcs/day
Solar Actuator Line Capacity

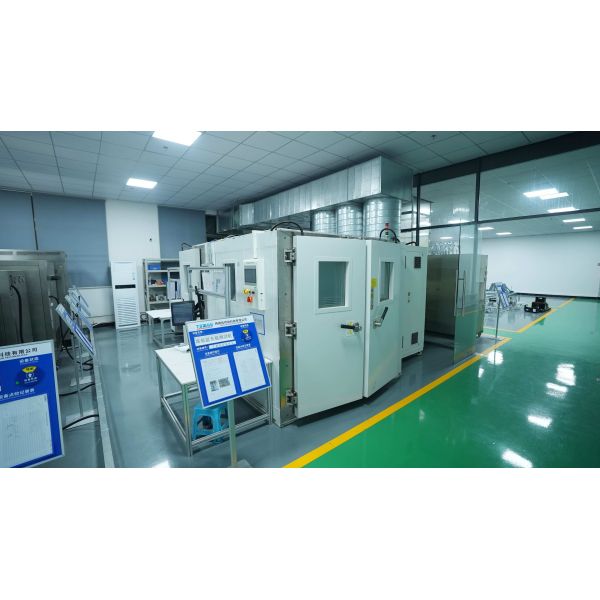

R&D & Testing
Load · IP · Durability · Performance
Find the Right Solar Tracker Linear Actuator
To recommend the right actuator for your solar tracking system, please provide the required load, stroke, installation dimensions, voltage, feedback requirements, protection requirements and project quantity.
Not sure what information is needed? Read our Linear Actuator Selection Guide before sending your inquiry.
